FAMO - Autofax
Automatic Send-FAX-Unit With 23 Inputs


Features

  • Automatic transmission of predefined FAX-pages networks for different receivers
  • Message transmission by event activation
  • Transmission of data telegrams to remote control stations
  • 23 message inputs to connect potential-free contacts
  • Automatic dial and dial repeat in case of busy line
  • Phone number memory for alternative calling number
  • Remote notification call, by triggering a relay contact
  • Remote programming and configuration using the telephone network (option)
  • FAX-journal as transmission protocol with phone numbers and time stamp
  • Input status display and function display with LCD-Display
  • RS232-interface for programming phone numbers, message-texts and fax-pages
  • Automatic time synchronization with radio-timebase (DCF77)
  • Connectable with private and public ABX and private Lines
  • Telephone connection is throughout
  • Connection only during data transmission
  • German PTT-admission A105279D

back to top

Description

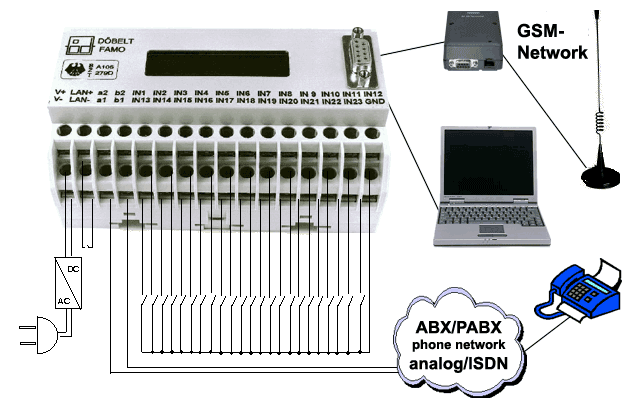

Using the event reporter AUTOFAX appearing events cause an automatic transmission of TELEFAX-messages or data telegrams to a remote control station. The device is able to work by using private/public-ABX connections. By triggering a message, caused by a status change on a device input, a predefined FAX-message with up to several 1000 characters or a data telegram will be automatically transmitted. So AUTOFAX is able to register various events for several service providers and to report them to the receiver using a FAX-transmission. For various events 23 message contacts are available, which are assigned with several FAX- texts or data telegrams. Message triggering will be initiated by actuating a closing or opening contact at the respective input slot.
Per message, several phone numbers for the destination of information transmission can be defined, so that a FAX-messages can be sent to several receivers simultaneously. In case of a busy line a dial repeat takes place or an alternative telephone number will be dialed. The function-mode and the state of each input slot is displayed on a LC- Display.
The telephone connection is throughout, so a sequential wired telephone can always be used even if AUTOFAX doesn´t transmit data.
Telephone numbers and FAX-texts are configured by using a PC and a configuration software. Data is transmitted from PC to AUTOFAX over an RS232 interface. Programming is possible at any location.
It is possible to program the AUTOFAX via a direct connection or via a telephone by using the telephone network (remote programming/ (option). Even at power failure all inputted data stay alive, because they are stored in non- volatile memory.
It is possible to recieve on-line ASCII datas from other units over the RS232 interface and to send them as a FAX-message (option). On this way, you can e.g. transmit production datas every day.
As receiving station a simple FAX-receiver (group 3) is enough.
  • Power supply
    • voltage: +12V=/+24V=, 150mA
  • Design
    • module-case for EN-bar mounting, L: 140mm, W: 90mm, H: 60mm; 8 PLS
  • Application
    • electric installations
    • process-, pump station supervising
    • heating-, air conditioning supervising
    • environmental measure stations
    • wind-power, etc.
