Locating vehicles, mobile systems and persons via GPS and GSM
Characteristics
The DxPOS-System offers the following functions:- GPS locating with GSM transmission
- Locating via cell informations of the radio network operator LBS (Location Based Services)
- Additional emergency call and vehicle information
- Emergency call funktion to arbitrary call objects
- Area monitoring with alerting at limit crossing
- Logger for recording position data
- Arbitrary time pattern for the recording funktion (optional)
- Transmission of the logged data in arbitrary time pattern, e.g. once a day
- Connection of sensors (speed indicator, tank, charging condition, ...)
- Pressure key link for the automatical transmiision of predefinend messages (optional)
- DxPOS with GPS in a IP68-Box for vehicles, supply with 12V from a onboard battery
- Central with map-software and vehicle display
- Display of the position on the internet (optional)
- Repeating function at abortive transmission
- Time synchronisation via control center or DCF77
- Battery voltage monitoring
- Remote configuration
Options
- Information display
- Operator and display panel
- comfortably operated configuration software
- DxFLEET-Central
Description

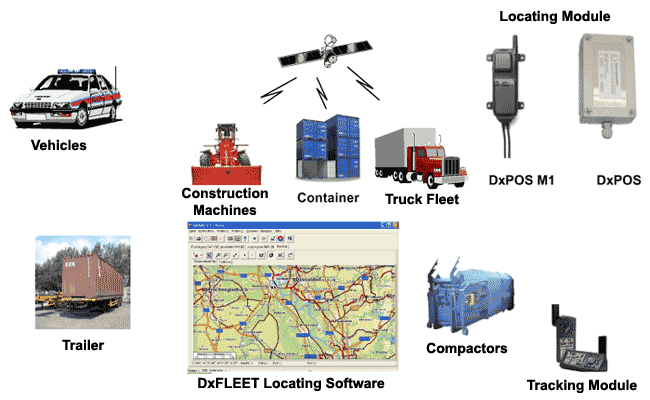

With DxPOS and DxFleet we provide an ideal solution for the remote monitoring and locating of vehicles. DxPOS possesses an integrated logger function for the recording of the route. The position data can be sent to a fax receiver or to a control station via sms, e-mail or via fax. Furthermore it's possible to cut malfunction- or event messages in a call and to transmit them to various receivers with individual plaintext attached.DxPOS Locating Device
DxPOS with GPS sends the GPS position data and tranmits them to the locating software DxFLEET for visualizing purpose. For apllications without high demands of precision we offer a DxPOS with cell locating of the radio network operator. The data is transmitted to the DxFLEET software or to the DxNET internet control station. An external GPS and GSM antenna can be connected to the DxPOS device. As an option an area can be deposited at the DxPOS, within which the device may stay. In case of leaving this area, an automatical message with the coordinates is sent to the receiving central. A notification can also occur at reaching a position, at predefined changes of position or at the push of a button and changes of state respectively. Inputs and outputs for coupling signals from the station or the vehicle are available. The switch-on and switch-off of certain functions of the station is possible.The position of the DxPOS device can be requested at any time via sms or from the central. Whether a display is connected to the DxPOS device, messages for the user can be directly displayed locally. A phone isn't required. The control of the service staff can be accomplished in this way effectively.
As a option a phone can be connected to the DxPOS, to establish voice communication.
The battery durability depends on the number of sending processes and charging cycles. Battery floats from hours up to several years are possible. Operating DxPOS as stand-alone version up to 5000 transmissions can be realized with the standard battery.
DxFLEET Locating Software
The DxFLEET locating software allows to display positions of the DxPOS devices on your PC. For Germany and nearly all european countries and countries of the world corresponding maps are availible. The Programm installation happens on your windows PC. The data interchange via sms oder data connection with DxPOS is realized via a radio modem with DxPOS. Every object is displayed in a list or on a map. Incoming position notifications are immediately updated. Every object can be configured and displayed individually. The history of a DxPOS can be requested and displayed.DxNET-FLEET
With the internet control station DxNET-FLEET several positions of objects may be displayed on the internet (www.dxgo.net). The User doesn't need any up to date software on his PC to benefit from all functions.Applications
- Monitoring of machines, construction machines, containers
- Fleet control
- Controling Service staff
- Transport Supervision
- etc.
