Characterics

• Flexible applications in waters of any kind (lakes, rivers, wastewater treatment plants, etc.)
• Permant Measuring of water typical parameters like the pH-value, temperature, redox, oxygen, conductivity, etc.
• Up to three different Measurements in one sensor
• Completely phone - and electricity network independant
• Integrated battery supply (durability up to 10 years)
• high precision of measurements due to an integrated measured value pick-up
• Different limit values programmable

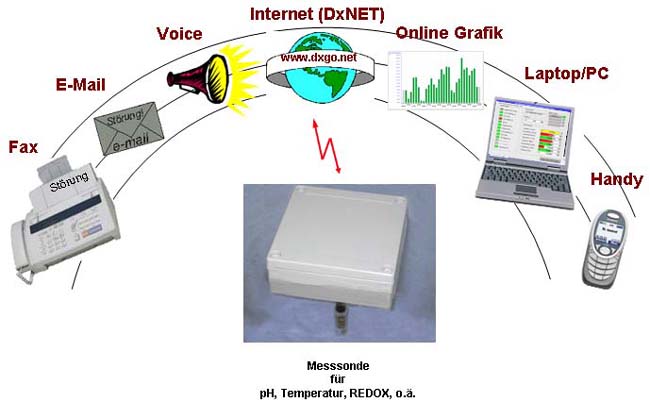

• Notification occurs via GSM-Modem per SMS, E-Mail, Fax, Pager, Internet (DxNET)
• Online transmission of measured values via GSM/GPRS
• Online Visualization of measured values on the Intra-/Internet
• Integration into existing water monitoring systems is possible
• Several temperature sensors (PT100/PT1000) connectable
• Mounting form: water proof case IP68, floatable, battery and antenna integrated
• Anchorage possible; dimensions: 130*130*60mm³ with electrode: 130*130*250mm³

Applications

• continious water monitoring in wastewater treatment plants, power plants, lakes, rivers, etc.

Operation Parameters

• Measuring Ranges: temperature: -5 ..60°C , pH- 0..14, oxygen: 0..60mg O2/l, conductivity in mS/cm, REDOX in mV
• Battery Durability:up to 10 years (battery integrated)

Option

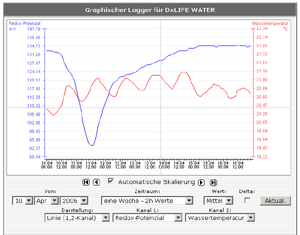

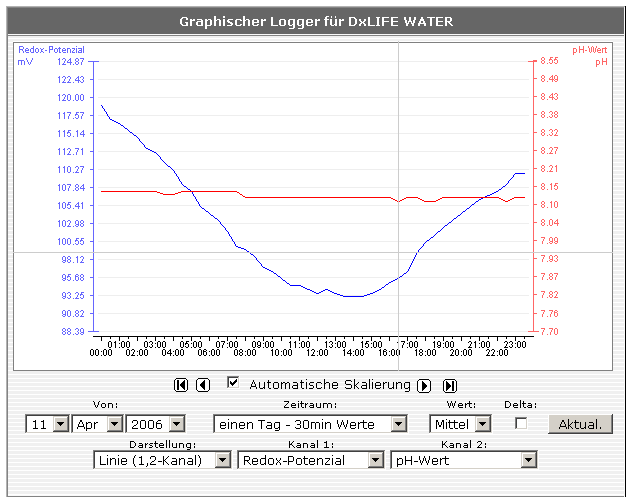

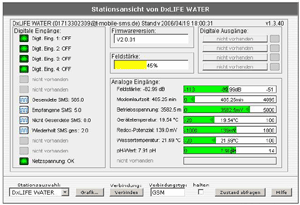

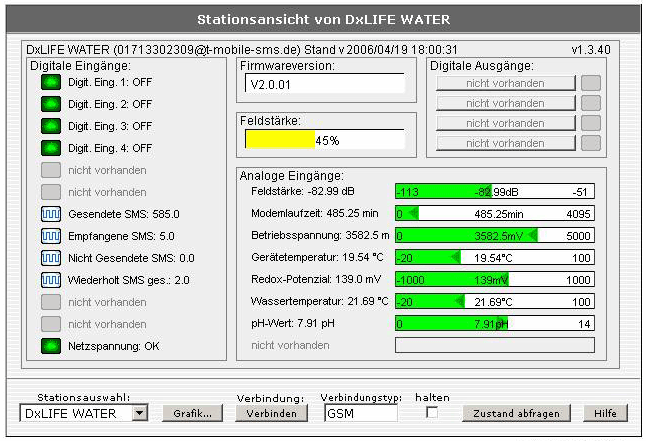

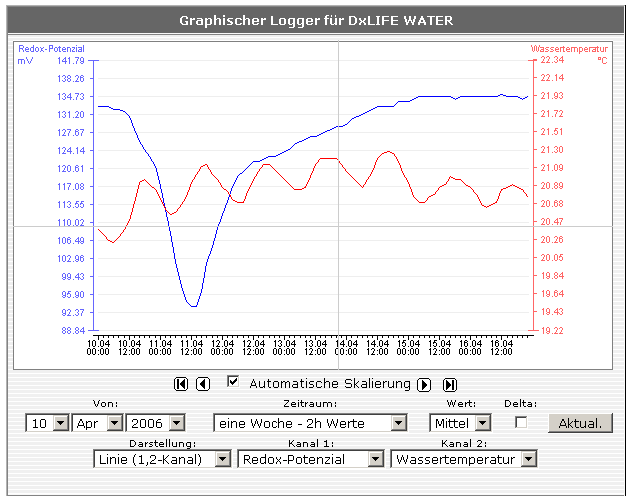

Screenshots
