DxINT
GSM/GPRS module for DIN rail assembly


Characteristics

  •   Internal GSM900/1800-Modem
  •   Up to 8 message inputs
  •   Transmission of news with alarm release and deactivation in plain text
  •   Notification via PAGER, SMS, email, FAX and on the Internet at www.dxgo.net
  •   Generation of alarm by change in status at the contact input
  •   4 outputs for switsching fire-extinguishing systems, sirens or similar via SMS or Email
  •   Repetition of call in given time slot pattern
  •   Confirmation by the receiver with feed and acceptance of the notification
  •   Configuration by SMS, possibility of remote configuration via email from everywhere
  •   Status inquiry from the mobile telephone or via email
  •   Routine call in freely definable time slot pattern
  •   Restart message after power connection
  •   DCF/Radio time synchronization
  •   Variants for battery operation, DIN rail or wall mounting
  •   CE permission

Description

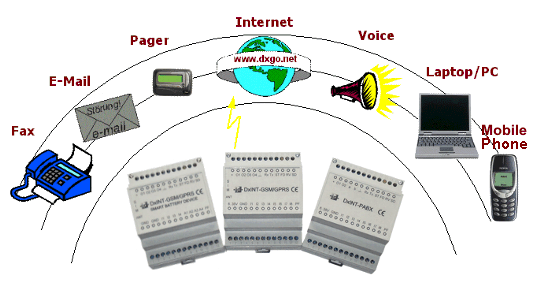

With DxINT it's possible to announce events by SMS, FAX, e-mail, pager or on the Internet. In addition you are able to activate a switching output by sending a SMS or email. The DxINT Plug & Play module consists of:
  • internal radio modem for GSM (D1/D2/E+)
  • Internal GSM antenna, external antenna optionally
  • direct 12VDC or 24VDC supply
  • DIN rail power pack for 230VAC available
    		•  Possible applications are e.g. the monitoring and control of:
    Electricity installations, process procedures, heater and air conditioning systems, environmental measuring stations, wind-powered devices, elevators, renting houses, buildings, break-down alarm systems, vending machines, water supply and waste disposal facilities, and much more..


    Technical Data/Type DxINT 4-2R DxINT 4/4-4OC DxINT 8-2R AC DxINT 3-4OC BAT
    Modem GSM 900/1800 GSM 900/1800 GSM 900/1800 GSM 900/1800
    Digital inputs 4 4 8 8
      #of it used as clock pulse inputs 0 4 8 8
    analogue inputs 0 4 0 8
    Input voltage floating floating floating floating
    Supply voltage DC 12/24V DC 12/24V AC/DC 12/24V Int. Batterie/5 years
    Outputs 2 relays 4 transistors 2 relays 4 transistors
    Output switching frequency 1 cycles per second 10 cycles per second 1 cycles per second 10 cycles per second
    Output loading capability 125VDC/1A 50VDC/1A 125VDC/1A 50VDC/1A
    Energy dissipation 3W..6W 2W..4W 3W..7W 3 & mu;W Stby/1W Tx
    Time switch clock/course reserve 10h 10h 10h 5,,10 years
    Battery back-up/charging current 12VDC/lq=60mA 12VDC/lq=60mA 12VDC/lq=60mA 12VDC
    Connection 2x1,5mm²/1x2,5mm²
    Temperature range 0V.. +55°C
    Noise suppression/noise immunity EN55011/IEC801
    Enclosure IP20
    Dimensions (B*H*T) mm³ 4TE (72x90x70)
    Assembly/shape of the housing DIN rail 35mm
    Announcements LED for STATE/FIELD/RECEIVE/SEND
    Other connections Option: Ext. Antenna FMA
    Part number ID20301 ID20302 ID20303 ID20304
